HiStone TP808 External Thermal Receipt Printer

External Thermal Receipt Printer

A compact external receipt printer designed for busy retail and hospitality counters, with high-speed thermal printing, flexible paper loading and standard POS connectivity.

The HiStone TP808 is a compact direct-thermal receipt printer designed for point-of-sale environments that need fast output without occupying excessive counter space. Its cubic enclosure supports both top and front paper loading, allowing the printer to be positioned around different checkout layouts and service counters.

The supplied HiStone-branded configuration supports USB, serial and Ethernet connectivity together with cash-drawer control. It prints common one-dimensional and two-dimensional barcodes, supports ESC/POS commands and includes an automatic cutter with a manufacturer-rated service life of two million cuts.

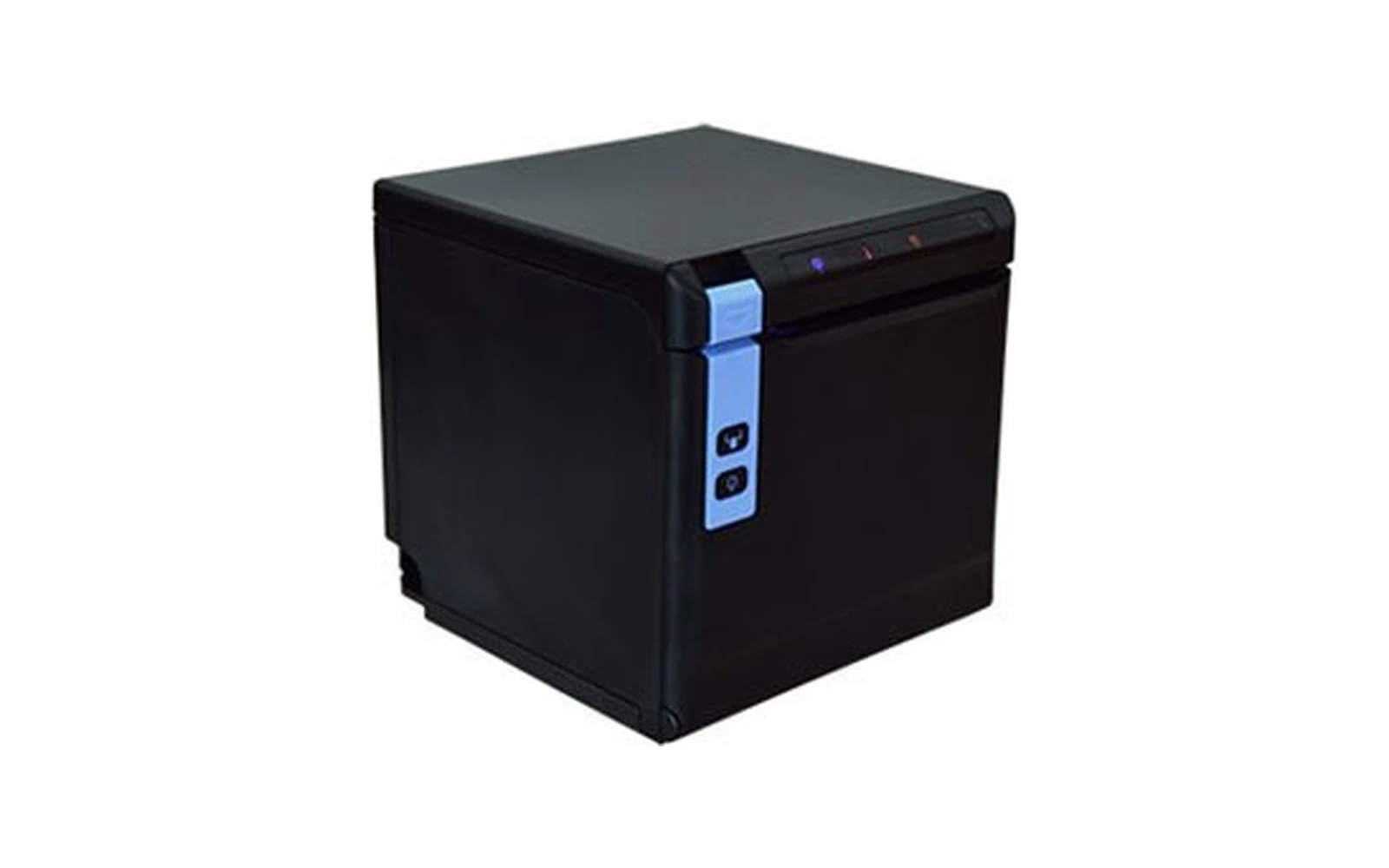

Black HiStone TP808 external thermal receipt printer

Product Highlights

High-speed receipt printing

The supplied specification lists printing at up to 260 mm/s.

58 mm and 80 mm paper

One printer supports common two-inch and three-inch receipt-paper formats.

Top or front paper loading

Flexible paper access helps the printer fit different counter and enclosure layouts.

Automatic cutter recovery

The supplied feature set includes automatic cutter-jam elimination.

Standard POS connectivity

USB, serial, Ethernet and cash-drawer connections are documented for the supplied configuration.

Barcode and QR output

The printer supports common one-dimensional barcodes together with PDF417 and QR code.

Available Configurations

Printer Platform

TP808 direct-thermal receipt printer

  • Print method Direct thermal line printing
  • Resolution 203 dpi standard; 180 dpi emulated
  • Maximum print speed 260 mm/s
  • Supported paper widths 80 mm / 58 mm
  • Maximum roll diameter 83 mm
  • Paper thickness 0.056–0.13 mm
  • Paper loading Front or top
  • Paper cutting Partial or full cut
  • Command set ESC/POS
  • Memory 4 MB RAM and 4 MB Flash
  • Sensors Paper-out and cover-open standard; paper-near-end optional
  • Dimensions 135 × 132 × 132 mm
  • Weight 1.37 kg
  • Power adapter AC 100–240 V input; 24 V, 2.5 A output
  • Operating environment 0°C–45°C; 25%–85% RH
  • Manufacturer-rated life 150 km thermal head; 2,000,000 cutter operations
Connectivity & Software

Commercial POS integration

  • Standard interfaces Serial, Ethernet, USB and cash drawer
  • Wireless Not confirmed in the supplied HiStone V3.1 configuration
  • 1D barcodes UPC-A, UPC-E, EAN-8, EAN-13, Code 39, ITF, Codabar, Code 128 and Code 93
  • 2D barcodes PDF417 and QR code
  • Driver support Common Windows, Linux, CUPS and OPOS environments
  • SDK support Windows CE/Mobile, Android and iOS listed in the supplied sheet
  • Product colours Black and white are pictured; exact availability requires confirmation

This page is prepared from the supplied HiStone-branded V3.1 document. Before activating the product publicly, ABS should confirm current HiStone availability, final branding, Saudi-market interfaces, driver downloads, colour, box contents and certification documentation. Bluetooth and Wi-Fi are not claimed.

Shared Capabilities

  • Fast direct-thermal receipt output
  • 58 mm and 80 mm paper handling
  • Top or front loading
  • Automatic cutter
  • USB, serial and Ethernet connectivity
  • Cash-drawer control
  • Common one-dimensional barcode printing
  • PDF417 and QR-code printing

Ideal Applications

  • Retail checkout
  • Restaurants and cafes
  • Quick-service counters
  • Hospitality billing
  • Supermarket receipt printing
  • Order and collection counters
  • Compact POS workstations
  • Kiosk and self-service integrations
